PLATE TECTONICS




Objectives and Indicators for this Unit

C. PLATE TECTONICS

INDICATOR

• 1. Recognize and describe the internal and external structure of the Earth.

OBJECTIVES

                a. Recognize and describe that the Earth's mantlle

                         a.Lies between the core and the crust

                         b.  Is very hot

                         c. Has properties of both solids and liquid

2. Recognize and describe that the Earth's core
   • Is at the center of the Earth
   • Is very hot
   • Is dense and metallic
3. Identify and describe the Earth's crust.
   • The solid crust consists of separate plates
   • The plates constantly move in different directions due to convection currents
   • The plates interact with one another as a result of plate motion.

INDICATOR

• 2. Recognize and explain how major geologic events are a result of the movement of Earth's crustal plates.

OBJECTIVES

1. Recognize and describe the evidence for plate movement.
   • Shape of continents
   • Continuity of geologic features and fossils on the continents
   • Ocean rifts, seafloor spreading
   • Global patterns of earthquakes and volcanoes
2. Recognize and explain that major geologic events (earthquakes, volcanic activity, sea floor spreading) occur along crustal plate boundaries.

ASSIGNMENT=

Please copy this quiz in your journal and fill in the blanks there

PRE-TEST    Plate Tectonics

1. The theory that explains how the earth's surface is made up of moving rocky plates is called  Supercontinent  Continental drift  Sea floor spreading  Plate tectonics	2. At one time, all of the continents may have been combined into one giant continent called  North America  Eurasia  Europe  Pangaea
3. The mid-ocean ridge is  A volcano  The Rocky Mountains  A huge mountain range under the ocean  Another name for Pangaea	4. The word that means plates pushing together is  Divergent  Continental  Convergent  Boundary
5. This article is mainly about  The theory of plate tectonics  How Saudi Arabia separated from the continent of Africa  Volcanoes caused by the Mid-Atlantic Ridge in Iceland  The supercontinent	6. List and describe two powerful forces of nature caused by plate tectonics.
7. What do you think will happen as the plates continue to move?

PRE-TEST   Plate Tectonics Theory

1. Plate tectonics is the study of ______.	2. What causes the plates to move?   Volcanoes   Earthquakes   Heat from inside the earth   All of the above
3. The plate tectonics theory explains ______.   How the continents drifted   The cause of volcanoes and earthquakes   How mountains form   All of the above	4. Which layer of the earth is soft because it is almost, but not quite, melted?   Core   Asthenosphere   Mantle   Lithosphere

The Earth A Living Planet

Assignment= Please watch this video and take 20-25 notes from it
http://www.encyclopedia.com/video/lsZq1pNufNg-plate-tectonics.aspx
Please complete these questions in your journal  from the video
1,  When did the Earth get created in space?
2. What happened when the water rains down on the hot lava for 1 million years?
3. What is "pamgea"?
4. What is energizing the plates to move?
5. What is convection?
6.  What is the collision zone?
7. What is the earth's tallest mountain?
8. How did a fish fossil get on top of the tallest mountain?
9.  What caused the himilayan mountains to form?
10.  What is a mountain trench and what causes it?


       The Earth
Earth is a living planet. Activity is constantly taking place not only on the surface, but also on the inside beneath our feet. We do not know exactly how our planet works. Compared to the age of the universe, the amount of time we have studied the Earth is very short. We do have theories about how continents form and change, but the scope of testing such theories is far too broad to be realistic. We continue to study evidence, but are not able to prove any theories beyond a doubt.

Emilie Beuzelin
Assignment=Please copy this graphic organizer and complete it in your journal from the reading above.

Assignment= Please explain in your journal what the expression, "

Earth is a living planet" means.

Geophysicist

The coastlines of Africa and South America fit together like pieces of a jigsaw puzzle. This is one of many pieces of evidence to support the theory of continental drift.

---

Throughout history, several theories have tried to explain the behavior and evolution of the Earth. The most convincing of these, widely supported by scientists, is the plate tectonics theory.

Assignment=Please copy this graphic organizer and complete it in your journal from the reading above.

Click on the image to see an animated history of the earth from 600,000,000 years ago to 200,000,000 years into the future.

Alfred Wegener, a German geologist and meteorologist, studied the close fit between the coastlines of Africa and South America. He observed that fossils were similar on both sides of the Atlantic. In 1912, he proposed the theory of continental drift. According to his theory, the two continents were once joined together.

Over the following years, the theory of continental drift was refined to become the theory of plate tectonics. Scientists studied how plant and animal fossils are spread  throughout the world. They learned more about the nature of the ocean floor and distribution of volcanoes and earthquakes. They gained new information about Earth’s ancient magnetism and the flow of heat from the interior of the Earth.




Assignment= In your journal, please explain what did the scientist,

Alfred Wegener, discover?

Assignment=Please copy this graphic organizer and complete it in your journal from the reading above.

Assignment=  Explain in your journal what has been learned by the plate tectonics theory that you read in the paragraphs above?

he Earth — A Living PlanetBeneath the Surface

At the surface of the Earth, earthquakes and volcanoes give evidence of action taking place inside the planet. The plate tectonic theory explains these events, as well as the distribution of certain types and ages of rocks.

We are able to drill only a few kilometers into the ground. This is nowhere near deep enough to give us proof about the inner composition of our planet. However, we are able to get strong clues from seismology (the study of earthquakes) and seismics (the study of man-made waves).

The Earth is composed of three main layers of rock:

• The crust is a relatively thin layer around the outside of the Earth. It is about six to seven kilometers thick under the oceans, and it ranges from 12 to 60 kilometers thick beneath the continents. Like the shell of an egg, the Earth’s crust is brittle and can break.
• The mantle is about 2900 kilometers thick and is made mostly of melted rock.
• The core is made of two layers: an outer core of melted rock and an inner core of solid rock.

Assignment=Please copy this graphic organizer and complete it in your journal from the reading above.

Assignment= In your journal, please explain what the crust, the mantle, and the core are.

Rock gets hotter the deeper it is underground. As the rock of the mantle is melted, the colder, solid crust is actually floating on top of it.

The Earth’s crust overall is heterogeneous — that is, its composition changes depending upon the location. However, the crust under the oceans is homogeneous, composed entirely of basalts, and very magnetic. The rocks beneath the ocean have an average age of less than 20 million years. The oldest oceanic rocks are 117 million years old, which is still quite young in geological terms. Beneath the continents, the crust is heterogeneous, composed of many rocks (essentially granites) and not very magnetic. These rocks have an average age of 1 to 2 billion years, much older than the rocks beneath the oceans. The oldest known rocks are 3.8 billion years old.


Assignment=Please explain in your journal what it means when "t

he Earth’s crust overall is heterogeneous"

Assignment=Please copy this graphic organizer and complete it in your journal from the reading above.

Assignment= In your journal, please explain what

heterogeneous and  homogeneous parts of the crust

are.

Courtesy USGS The earth is made of layers of rock and metal, some of which are molten. The crust on which we live is a thin, brittle layer, like the shell of an egg.

The crust and the shallow part of the mantle together are called the lithosphere. The lithosphere is rigid and about 100 kilometers thick. It is able to move about on the asthenosphere, the hotter, liquid layer directly beneath it. According to the plate tectonic theory, the lithosphere is not one solid block, but rather several pieces called plates. The plates are not attached to each other. They can move and push against each other in an organized way. The crust is like a jigsaw puzzle. Each piece is different, but together they make a clear picture.

Assignment=

Explain in your journal @ what is the

asthenosphere

Assignment=Please copy this graphic organizer and complete it in your journal from the reading above.

What causes the plates to move?

Courtesy USGS The movement of continental plates around the Earth is thought to be due to slow convection currents in the melted rocks of the mantle.

The mantle is a very deep layer of melted rocks called magma. The outer layer of the mantle cools when it meets the colder, solid crust above it and exchanges energy. Meanwhile, the inner layer of the mantle is getting warmer by exchanging energy with the very hot core beneath it. The result of this difference in temperature is a movement called convection. According to the plate tectonics theory, the plates move as a result of the slow convection currents moving beneath them.

The convection currents move magma toward the surface. As they move, they drag along the plates. The density of hot rocks is less than the density of colder ones. The less dense hot rock can rise through the crust and form a magnetic plume reaching to the surface. This is how a volcanic eruption begins.

The Earth — A Living PlanetPlate Borders & Mountain-Building

Plates move in relation to each other in three different ways: moving apart (divergent), pushing together (convergent), and rubbing sideways (transform)
.

Assignment=Please copy this graphic organizer and complete it in your journal from the reading above.

Assignment= In your journal, please explain what

divergent , convergent, and  transform are.

Divergent Plate Boundary (above) — Plates moving apart, as at the mid-Atlantic ridge. Click to see animation of different types of plate boundaries.

Convergent Plate Boundaries — Plates moving towards each other can create either mountains (above) or a subduction zone (below). Click to see animation of different types of plate boundaries

Transform plate movement (below) — Plates moving sideways and rubbing against each other can cause major earthquakes. Click either image to see animation of different types of plate boundaries.

Divergent Plate Movement

When plates move apart from each other, or diverge, it causes a weakness in the crust. This makes it possible for magma to come to the surface from below.

Imagine very hot rock coming up from below and arriving at the surface on the ocean floor. As it cools down, this lava  creates new crust. This is what is happening at the mid-oceanic ridges. These ridges are actually chains of volcanoes running along the ocean floor. Sometimes the tops of the volcanoes rise above the surface of the ocean water to form an island such as Iceland.

Assignment=Please copy this graphic organizer and complete it in your journal from the reading above.

Ocean floor volcanoes produce rocks from the mantle. These rocks, called basalts, create new oceanic floor. This explains why the rocks at the bottom of the ocean are young compared to other rocks. The spreading rate of new ridges varies from place to place around the world. In some locations as much as 18 centimeters may be added per year. In other places there may be almost no growth at all.

The lavas produced under water at these ridges have a special name because of their shape. Because they are formed in water, they cool quickly while flowing down the side of the submarine volcano. They are called pillow lavas because the cooling basalt forms pillow-shaped lumps.

Although the spreading rate of the ridges is not very fast, it has been going on for millions of years. Imagine what would happen if no crust were destroyed — the Earth would grow bigger every day! Thankfully, there is a way to destroy crust.

Assignment=

Please explain in your journal how a

 new oceanic floor is created

Assignment=Please copy this graphic organizer and complete it in your journal from the reading above.

Convergent Plate Movement:
Subduction Zones

When plates move towards each other, or converge, crust is destroyed as one plate rides over the top of the other. Oceanic plates are heavier and thinner, so they are generally forced underneath the lighter, thicker continental plates. The area where such an event takes place is called a subduction zone.

Volcanoes are also found near subduction zones. When the cold oceanic crust is forced down under the edge of a continental plate, it is heated by the underlying hot mantle. The heating is hastened by friction as the plates move against each other, causing earthquakes.

Over millions of years, thick layers of sediment have been laid on top of the old basaltic ocean floor. These layers include sand and mud from rivers and fragments of shells from sea creatures. As the oceanic plates go beneath the continental plates, the sediments are dragged down to the mantle where they are heated. They melt to create a new kind of magmathat forms rocks called andesite, named after the Andes Mountains in South America — an example of a subduction zone. Andesitic magma often escapes through cracks to the surface, causing volcanic eruptions. The melting sediments contain a lot of cold seawater, so these eruptions can be very dangerous. They are often associated with the release of superheated steam and other gases that can cause violent explosions.

Assignment=

Please explain in your journal what a

subduction zone is

Assignment=Please copy this graphic organizer and complete it in your journal from the reading above.

Convergent Plate Movement:
Mountain-Building

When plates move towards each other, rather than one sinking below the other, they may crumple into each other. The result is mountain-building. This is how the Himalayas were formed when the Indian subcontinent collided with Asia.

Transform Plate Movement

Transform plate movement takes place when two plates move sideways and rub against each other. The result is likely to be an earthquake. Transform plate movement is not associated with volcanoes or mountain-building. The San Andreas Fault in California, USA, is a site of this type of plate movement.

Assignment=Please copy this graphic organizer and complete it in your journal from the reading above.

Assignment=Explain about when

Transform plate movement happens  (in your journal)

Plate Tectonics  By Sharon Fabian

---

¹     The earth, just like a middle schooler sitting at his desk all afternoon, is restless! Even though we think of the earth as solid and steady under our feet, it is actually moving and shifting all the time. The scientific study of this earth movement is called plate tectonics. A plate is just a huge slab of rock, and tectonics comes from an old Greek word meaning "to build." So plate tectonics is the theory that explains how the earth's surface is built up from rocky plates which are moving.  ²     This theory is fairly new - it began in the 1960s. But even before that, scientists had the idea that the earth was always shifting. In 1912, Alfred Wegener came up with a theory called "continental drift" which said that maybe the seven continents sort of floated around on the earth. Way back in 1596, a Dutch mapmaker named Abraham Ontelius noticed that it looked like America had been "torn away from Europe and Africa." Scientists thought that, at one time, all of the continents might have been just one huge continent. They called it the supercontinent, and named it Pangaea. It may have existed around 225 million years ago. If you take a world map and cut out the continents, you can try to piece them together like a puzzle to make Pangaea.

 ³     Scientists have learned much more about these moving plates since the 1960s by studying the boundaries where the plates bump together. Since many of these boundaries are under the ocean, they use modern technology to search for clues. Sonar has been used to find out how deep the ocean is in various areas. Satellites have mapped out the boundaries of the plates, and shown how they changed over time. Magnetic strips on the ocean floor have been discovered by scientists using magnetometers.  ⁴     One really big discovery was the mid-ocean ridge. The mid-ocean ridge is a huge underwater mountain chain that zig-zags around some of the continents and circles much of the earth. The mid-ocean ridge has been built up from magma that pushes up from below. At the same time that magma is pushing up and causing the sea floor to spread in some places, in other places the sea floor is gradually disappearing down inside ocean floor trenches.  ⁵     A part of the mid-ocean ridge, called the Mid-Atlantic Ridge, goes right through the middle of Iceland. It causes big splits called fissures, lots of volcanoes, and lava fountains.  ⁶     Another example of spreading, or plates pulling apart, happened in northern Africa many years ago. There Saudi Arabia became separated from the rest of the continent of Africa as the plates spread apart. That is how the Red Sea was formed. When plates pull apart, forming new crust for the earth, they are called divergent plates.  ⁷     Plates can also move toward each other. Then they are called convergent plates. Sometimes they crash together, sometimes one plate slowly slides under the other.  ⁸     Sometimes the plates scrape together side by side. The San Andreas Fault, which runs down the middle of California, is an example of plates that are scraping along side by side. It is known as a transform fault. If you have heard people joking about California falling into the ocean, this is what they are talking about! Of course these things take time, often millions of years.  ⁹     Altogether there are about 12 plates that make up the surface of the earth. Many of the continents have their own plate. For example there is a North American plate, which includes all of North America and extends out into the ocean on both sides. Europe and Asia share a plate, the Eurasian Plate. There are also plates that are mostly under the oceans. Plate tectonics show us powerful forces at work within the earth. These forces cause earthquakes to happen, volcanoes to erupt, and mountains to form. People cannot control these powerful forces, but we can learn a lot from them.
Copyright © 2011 edHelper





Assignment=Please create your own test from the reading above , copy it in your journal and take the test.

1.	2.
3.	4.   False   True
5. Complete the sentence:                                    ______.	6.
7.	8.

---

Assignment=Explain about Who

Abraham Ontelius

was

and what did he discover (in your journal).

ASSIGNMENT=

Please copy this quiz in your journal and fill in the blanks there

Plate Tectonics

1.   The theory that explains how the earth's surface is made up of moving rocky plates is called   Supercontinent   Continental drift   Sea floor spreading   Plate tectonics	2.   At one time, all of the continents may have been combined into one giant continent called   North America   Eurasia   Europe   Pangaea
3.   The mid-ocean ridge is   A volcano   The Rocky Mountains   A huge mountain range under the ocean   Another name for Pangaea	4.   The word that means plates pushing together is   Divergent   Continental   Convergent   Boundary
5.   This article is mainly about   The theory of plate tectonics   How Saudi Arabia separated from the continent of Africa   Volcanoes caused by the Mid-Atlantic Ridge in Iceland   The supercontinent	6.   List and describe two powerful forces of nature caused by plate tectonics.
7.   What do you think will happen as the plates continue to move?

Plate Tectonics Theory  By Cindy Grigg

---

¹     The earth's crust and the upper part of the mantle are known as the lithosphere. The lithosphere is solid and very firm, but it is not one whole piece. It is broken into sections called plates. There are eight major plates and some smaller ones. The places where these plates meet are called plate boundaries.

Assignment=Please copy this graphic organizer and complete it in your journal from the reading above.

Assignment= Explain what a

lithosphere is (in your journal)

²     The plate tectonics theory explains how the continents drifted. It also explains how volcanoes, earthquakes, and mountains form. Plate tectonics is the study of the movement of Earth's crust. It's hard to imagine huge pieces of the earth's crust moving around, but they do. The movement is very small, though - only five to ten centimeters each year. What causes the plates to move? The simple answer is heat from inside the earth.

Assignment=Please copy this graphic organizer and complete it in your journal from the reading above.

³     Under the lithosphere lies the asthenosphere. It is part of the earth's mantle. It is still solid, but it is much less firm. Geologists (scientists who study the earth) say that it has plasticity. It is soft because it is almost, but not quite, melted. This is magma, and it can flow like thick syrup. Geologists believe that the earth's plates move about on the asthenosphere like bubbles in a pan of hot water. Heat causes the magma to rise up in the mantle. When the molten magma meets the rigid material of the lithosphere, it moves across the surface horizontally. The magma begins to cool and sinks back down into the mantle. The cycle repeats.


Assignment=Please copy this graphic organizer and complete it in your journal from the reading above.

⁴     The earth's landmasses and oceans sit on top of the tectonic plates. As the plates move, the oceans and continents ride on top of them. The plates move from side to side as well as up and down. The sides of plates may push together. They may pull away from each other. They may grind past each other in opposite directions. Over millions of years, the plates change in size and shape as the edges are added to, crash together, or pushed back into the mantle and melted.

Assignment=Please copy this graphic organizer and complete it in your journal from the reading above.


Assignment= Explain in your journal what happens to the earth's plates during millions of years

⁵     Where two plates crash together, mountains are pushed up. This is how the Himalaya Mountains formed about 70 million years ago. Volcanoes and earthquakes occur at plate boundaries, too. The movement of tectonic plates changes the surface of the earth. Plate movements affect people and animals living on earth.
Copyright © 2011 edHelper

---

Plate Tectonics Theory

1.   Plate tectonics is the study of ______.	2.   What causes the plates to move?   Volcanoes   Earthquakes   Heat from inside the earth   All of the above
3.   The plate tectonics theory explains ______.   How the continents drifted   The cause of volcanoes and earthquakes   How mountains form   All of the above	4.   Which layer of the earth is soft because it is almost, but not quite, melted?   Core   Asthenosphere   Mantle   Lithosphere

Plate Tectonics TheoryAssignment= In your journal,  how do you think the earth's continents will change in the next 200 million years? Draw a picture of how you think they will look. Label each continent.

---

---

---

---

---

---

---

Plate Tectonics Theory

Assignment= In your journal, w

rite a letter to a friend and explain how something as large and heavy as a whole continent can move around.

---

---

---

---

---

---

Plate Tectonics Theory  By Cindy Grigg

---

opposite lithosphere year lies molten tectonic material plasticity tectonics mantle years surface cycle affect asthenosphere meets

ASSIGNMENT= Please copy this cloze assignment in your journal and fill in the blanks there

Directions:  Fill in each blank with the word that best completes the reading comprehension.

     The earth's crust and the upper part of the mantle are known as the lithosphere. The(1)  _______________________   is solid and very firm, but it is not one whole piece. It is broken into sections called plates. There are eight major plates and some smaller ones. The places where these plates meet are called plate boundaries.
     The plate tectonics theory explains how the continents drifted. It also explains how volcanoes, earthquakes, and mountains form. Plate (2)  _______________________   is the study of the movement of Earth's crust. It's hard to imagine huge pieces of the earth's crust moving around, but they do. The movement is very small, though - only five to ten centimeters each(3)  _______________________  . What causes the plates to move? The simple answer is heat from inside the earth.
     Under the lithosphere (4)  _______________________   the (5)  _______________________  . It is part of the earth's mantle. It is still solid, but it is much less firm. Geologists (scientists who study the earth) say that it has (6)  _______________________  . It is soft because it is almost, but not quite, melted. This is magma, and it can flow like thick syrup. Geologists believe that the earth's plates move about on the asthenosphere like bubbles in a pan of hot water. Heat causes the magma to rise up in the mantle. When the (7)  _______________________   magma (8)  _______________________   the rigid (9)  _______________________   of the lithosphere, it moves across the surface horizontally. The magma begins to cool and sinks back down into the (10)  _______________________  . The (11)  _______________________   repeats.
     The earth's landmasses and oceans sit on top of the tectonic plates. As the plates move, the oceans and continents ride on top of them. The plates move from side to side as well as up and down. The sides of plates may push together. They may pull away from each other. They may grind past each other in(12)  _______________________   directions. Over millions of years, the plates change in size and shape as the edges are added to, crash together, or pushed back into the mantle and melted.
     Where two plates crash together, mountains are pushed up. This is how the Himalaya Mountains formed about 70 million(13)  _______________________   ago. Volcanoes and earthquakes occur at plate boundaries, too. The movement of (14)  _______________________   plates changes the (15)  _______________________   of the earth. Plate movements (16)  _______________________   people and animals living on earth.

---

Copyright © 2011 edHelper

ASSIGNMENT=

Please copy this quiz in your journal and fill in the blanks there

Plate Tectonics Theory

1.   Plate tectonics is the study of ______.	2.   What causes the plates to move?   Volcanoes   Earthquakes   Heat from inside the earth   All of the above
3.   The plate tectonics theory explains ______.   How the continents drifted   The cause of volcanoes and earthquakes   How mountains form   All of the above	4.   Which layer of the earth is soft because it is almost, but not quite, melted?   Core   Mantle   Lithosphere   Asthenosphere

How do earthquakes generate tsunamis?

---

Tsunamis are huge waves on the ocean and can be generated when the sea floor abruptly deforms and vertically displaces the overlying water. Tectonic earthquakes are a particular kind of earthquake that are associated with the earth's crustal deformation; when these earthquakes occur beneath the sea, the water above the deformed area is displaced from its equilibrium position. Waves are formed as the displaced water mass, which acts under the influence of gravity, attempts to regain its equilibrium. When large areas of the sea floor elevate or subside, a tsunami can be created.

Assignment=Please copy this graphic organizer and complete it in your journal from the reading above.

Large vertical or upward movements of the earth's crust can occur at plate boundaries. Plates interact along these boundaries called faults. Around the margins of the Pacific Ocean, for example, denser oceanic plates slip under continental plates in a process known as subduction. Subduction earthquakes are particularly effective in generating tsunamis.

This simulation (2 MB) of the 1993 Hokkaido earthquake-generated tsunami, developed by Takeyuki Takahashi of the Disaster Control Research Center, Tohoku University, Japan, shows the initial water-surface profile over the source area and the subsequent wave propagation away from the source. Areas in blue represent a water surface that is lower than the mean water level, while areas in red represent an elevated water surface. The initial water-surface profile, as shown in this image, reflects a large, long uplifted area of the sea floor lying to the west (left) of Okushiri Island, with a much smaller subsided area immediately next  to the southwest corner of Okushiri.

Assignment= Please explain in your journal what a "fault" is

Tsunami animation

http://www.ess.washington.edu/tsunami/movies/hokkaido1.mov

Tsunami animation

http://en.wikipedia.org/wiki/File:2004_Indonesia_Tsunami_Complete.gif

From green to brown -- the land is gutted
Aerial view of Banda Aceh, Sumatra, Indonesia.
Picture on left: January 10, 2004
Picture on right: December 29, 2004
(Three days after the tsunami)

Tsunami Pictures: #1Swedish tourist and courageous mother, Karin Svaerd (right inset), runs into the water to save her children from the tsunami in Thailand. They all survived. The three children are (left insets, from left to right): Filip, 11; Anton, 14; and Viktor, 10.














Tsunami Pictures: #2A man gets caught in the tsunami














Tsunami Pictures: #3The tsunami floods a coastal area

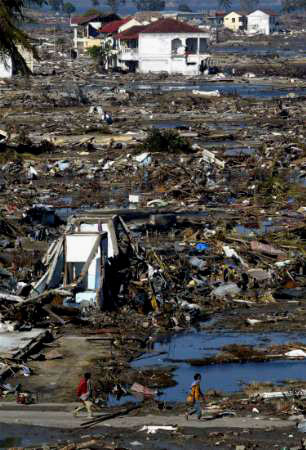

Destroyed houses from a tsunami in Banda Aceh, Sumatra, Indonesia




Assignment= Please click this website and watch the animation @ what happens after an Earthquake on the bottom of the ocean.  Then describe what happens in your journal.


Tsunami animation
http://es.ucsc.edu/~ward/indo.mov


Assignment= Please click this website and watch the animation @ what happens after an Earthquake on the bottom of the ocean.  Then describe what happens in your journal.

    Tsunami animation

http://staff.aist.go.jp/kenji.satake/animation.gif

Assignment= Please click this website and watch the animation @ what happens after an Earthquake on the bottom of the ocean.  Then describe what happens in your journal.

The World Tsunami animation
http://www.noaanews.noaa.gov/video/tsunami-worldpropagation2004.mov

ASSIGNMENT=

Please copy these quizes in your journal and fill in the blanks there

Topic C. Plate Tectonics

Indicator 1. Recognize and describe the internal and external structure of the Earth.

Objective b. Recognize and describe that the Earth's core

Selected Response Item

Use the information below to answer the following. The Aleutian Trench is an underwater feature, near Alaska, formed by the movement of two tectonic plates. As the North American Plate moves toward the Pacific Plate, the lower edge of the Pacific Plate becomes part of the mantle. The core of Earth is best described as a hot mass of metal a cold mass of metal less dense than the crust less dense than the mantle /toolkit/vsc/asse Topic C. Plate Tectonics Indicator 1. Recognize and describe the internal and external structure of the Earth. Objective c. Identify and describe the Earth's crust. Selected Response Item Use the technical passage 'Drilling to the Mantle' to answer the following question. Which feature best represents the crust of Earth? iron-based rocks separate moving plates thickest under the ocean floor composed mainly of molten rock Topic C. Plate Tectonics Indicator 2. Recognize and explain how major geologic events are a result of the movement of Earth's crustal plates. Objective a. Recognize and describe the evidence for plate movement. Selected Response Item Use the information below to answer the following. The Hawaiian Islands are home to some of the most studied volcanoes on Earth. The volcanoes erupt often but are seldom explosive because of the magma that they produce. Kilauea volcano is located on the largest of the Hawaiian islands and rises over 4,200 feet above sea level. Kilauea has been erupting continuously since 1983 and has resulted in new landmass. Which event is best explained by tectonic plate movement? a tornado a tsunami a hurricane a thunderstorm Topic C. Plate Tectonics Indicator 2. Recognize and explain how major geologic events are a result of the movement of Earth's crustal plates. Objective b. Recognize and explain that major geologic events (earthquakes, volcanic activity,sea floor spreading) occur along crustal plate boundaries. Selected Response Item Many processes on Earth occur at or near tectonic plate boundaries. Which geological events are most common along tectonic plate boundaries? erosion and deposition hurricanes and tornadoes earthquakes and volcanoes tidal waves and sedimentation ASSIGNMENT=  Please copy this quiz in your journal and fill in the blanks there POST-TEST    Plate Tectonics 1. The theory that explains how the earth's surface is made up of moving rocky plates is called  Supercontinent  Continental drift  Sea floor spreading  Plate tectonics 2. At one time, all of the continents may have been combined into one giant continent called  North America  Eurasia  Europe  Pangaea 3. The mid-ocean ridge is  A volcano  The Rocky Mountains  A huge mountain range under the ocean  Another name for Pangaea 4. The word that means plates pushing together is  Divergent  Continental  Convergent  Boundary 5. This article is mainly about  The theory of plate tectonics  How Saudi Arabia separated from the continent of Africa  Volcanoes caused by the Mid-Atlantic Ridge in Iceland  The supercontinent 6. List and describe two powerful forces of nature caused by plate tectonics. 7. What do you think will happen as the plates continue to move? POST TEST - Plate Tectonics Theory 1. Plate tectonics is the study of ______. 2. What causes the plates to move?   Volcanoes   Earthquakes   Heat from inside the earth   All of the above 3. The plate tectonics theory explains ______.   How the continents drifted   The cause of volcanoes and earthquakes   How mountains form   All of the above 4. Which layer of the earth is soft because it is almost, but not quite, melted?   Core   Asthenosphere   Mantle   Lithosphere sment_items/msa_scie
